AIR FORM AF46
a 46 passenger Hovercraft
OVERVIEW-
The AF46 features elegant design, ergonomic seating, impressive performance and seats 46 passengers in luxury.
Need to do long trips? there's a built-in HEAD (toilet) and a small room for a galley or storage.
Powered by triple 500hp turbo diesel engines.
CABIN-

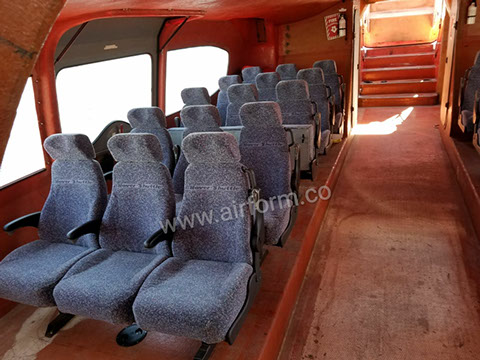

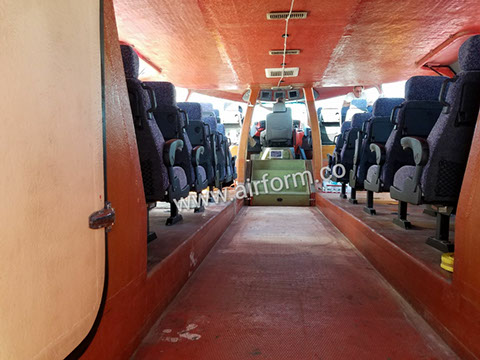

The cabin features a split-level design. The main cabin is spacious enough to seat 36 passengers, the upper cabin/cockpit area seats 10 passengers, the pilot & navigator.
Standard passenger seats recline & feature arm rests, table trays and magazine pockets.
The cabin aisle is 1.25 meters (49") wide!
COCKPIT-

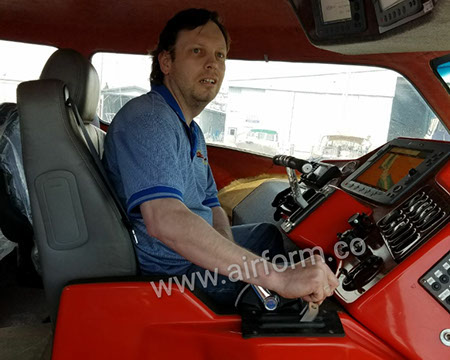

The cockpit has a clean modern layout which is well appointed, with modern controls and instruments.
The dash also features a 12" color LCD Radar/GPS screen, mounted directly in front of the pilot. There are 3x 8" color LCD screens for engine monitoring, Centrally located in an overhead console.
INGRESS & EGRESS-
Main entrance/exit is via a spacious stern door located between the propellers. This door folds out & down, which features built-in steps.
Additionally, there is a "gull-wing" type door, one on each side of the main cabin. For loading/unloading from a dock.
LIFT FANS-
Twin centrifugal lift fans, hydrostatically driven via the forward engine provide lift.
The lift fans can be slowed down or sped up during maneuvering, independent of propeller speed.
PROPULSION-
The propulsion propellers feature a fixed pitch prop with independent forward/reverse.
The propellers are hydrostatically driven. Eliminating shafts, belts, pulleys and bearings!
ENGINE-
This model features the reliable & powerful GM "DURAMAX" 6.6 liter turbo diesel engines.
Custom tuned for 500hp!
The engine rooms are accessible from within the craft.
MANEUVERABILITY-
Craft maneuverability is superior due to the combination of four independent control devices.
1. Rudders, provide steering 2. Elevators, provide fore & aft trim 3. "ABC" (active body roll control) system banks the craft into the turn (or can be used to check cross winds) 4. Propellers are used for slow speed maneuvering, with forward/reverse thrust.
SKIRT SYSTEM-
The skirt system is of "BAG, DIAPHRAGM & FINGER" type, which is dynamically stable under adverse conditions (weather or terrain related). With an impressive isolated obstacle clearance, of up to 1.2 meters. A smooth ride is ensured!
BODY DESIGN-
This model features a "wide body" design. This design eliminates the large unusable side panels often found on similar sized Hovercraft.
This normally "wasted space" is utilized for cabin width, resulting in a luxurious spacious cabin!
CONSTRUCTION-
The body is a one piece fiberglass foam sandwich construction with a molded gelcoat finish.
*major advantages of foam sandwich construction is superior thermal and acoustic properties with no joints or rivets to leak!

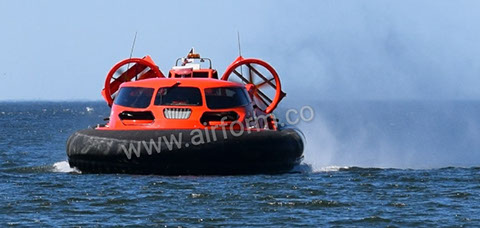

AIR FORM AF46 front view

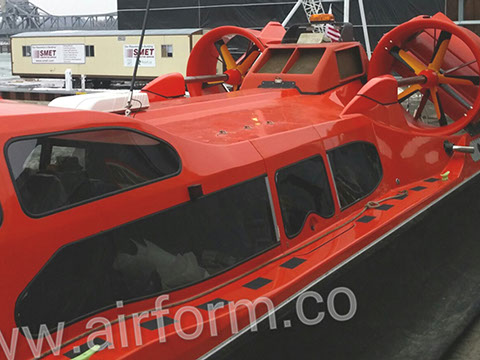

AIR FORM AF46 details

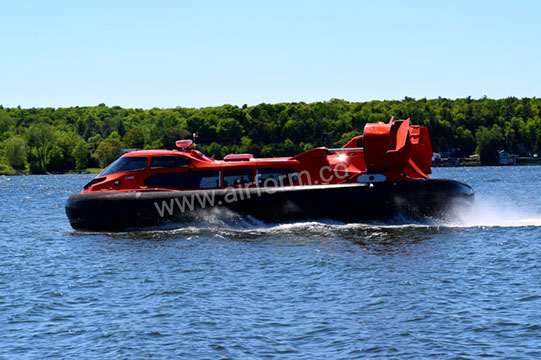

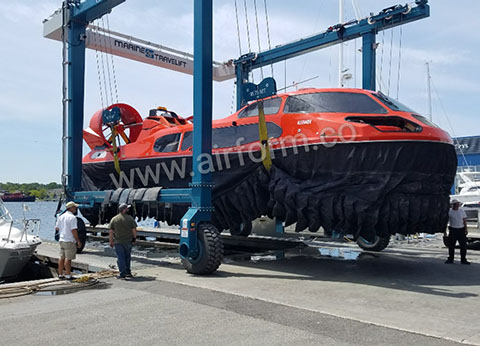

AIR FORM AF46 on Lake Michigan, USA

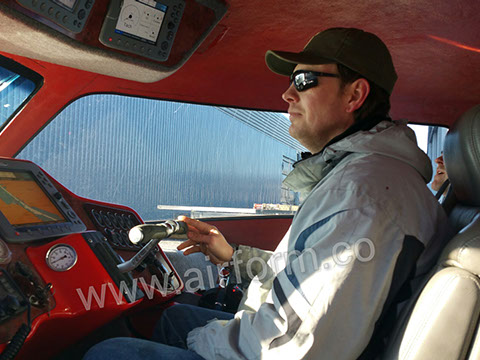

AIR FORM AF46 cockpit. Raymond Jordison

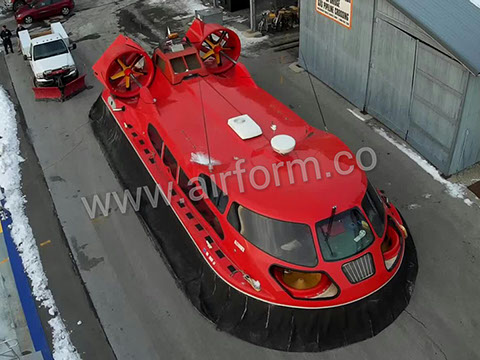

AIR FORM AF46 top view

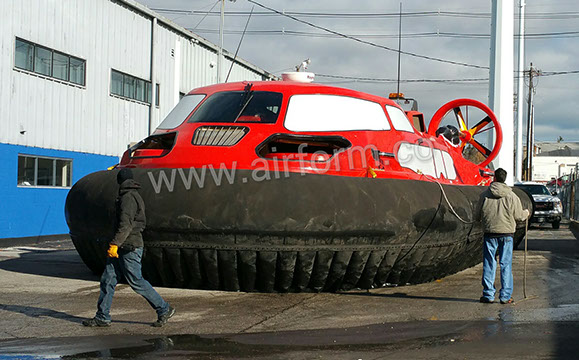

AIR FORM AF46 on hover

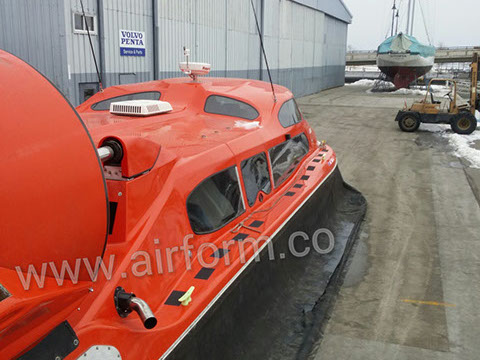

AIR FORM AF46 details
AIR FORM AF46 on Lake Michigan USA

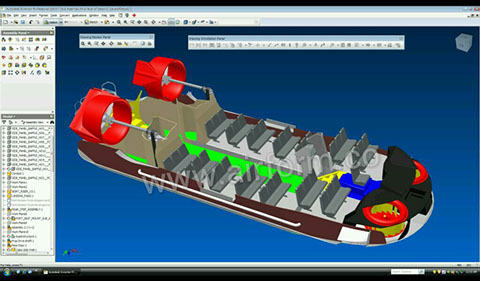

AIR FORM AF46 3D rendering/initial design
AIR FORM AF46 on Lake Michigan USA

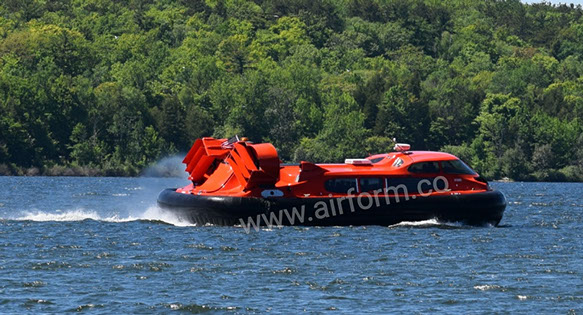

AIR FORM AF46 on Lake Michigan, USA
AIR FORM AF46 cockpit/forward cabin area
AIR FORM AF46 interior being outfitted
AIR FORM AF46 main cabin being outfitted

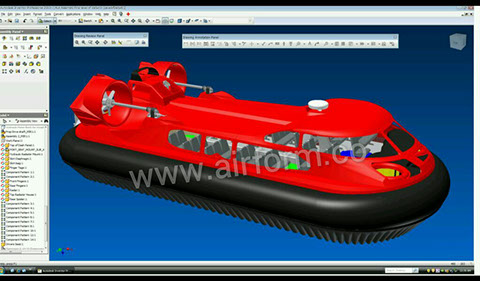

AIR FORM AF46 3D rendering/initial design

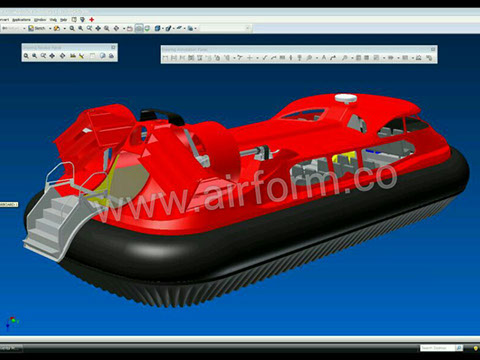

AIR FORM AF46 3D rendering/initial design2
12 - 16
<
>
AF46 base price FOB Seward, Alaska. USA US$2,250,000
SPECIFICATIONS
metric imperial
DIMENSIONS
Craft Length 14.5 m 47 ft. 6 in.
Craft Width 5.7 m 18ft. 8 in.
Craft Height 3.5 m 11 ft. 5 in.
Cabin Length 11 m 36 ft.
Cabin Width 4.5 m 14 ft. 8 in.
Cabin Height 2 m 6 ft. 6 in.
Aisle Width 1.25 m 4 ft. 1 in.
Cushion Height 1.2 m 3 ft. 9 in.
WEIGHTS & CAPACITIES
Craft Weight, empty 15,000 kg 33,069 lbs.
Craft Weight, fully loaded 21,500 kg 47,399 lbs.
Fuel Capacity 3x 378 liters 3x 100 US gal.
Crew 3
Max. Passengers 46
ENGINES
Type 3x GM Duramax (tuned)
Configuration V8
Power @ 3,200 rpm 3x 367 kw 1,500 hp
Torque @ 1,800 rpm 3x 1,152 Nm 3x 850 lb-ft.
Fuel Type Diesel
PERFORMANCE
Max. Speed 111 km/h 65 knots
Cruise Speed 74 km/h 40 knots
Max. Wave Height 2 m 6 ft. 6 in.
Max. Wind Speed 46 km/h 25 knots
Range @ cruise speed 1,000 km 540 knots
Models ranging from 6 to 46 passengers
